How To Install OpenShift Origin (OKD) Cluster on CentOS 7 / Redhat 7

The Origin Community Distribution of Kubernetes that powers Red Hat OpenShift. Built around a core of OCI container packaging and Kubernetes container cluster management, OKD is also augmented by application life-cycle management functionality and DevOps tooling. OKD provides a complete open source container application platform.

Enough talks, Lets check how to get it installed.  This guide will dive to the installation of OpenShift Origin (OKD) 3.x on a CentOS 7 VM.

Hardware Configurations:

I've created a t2.large instance in AWS for this setup.

My hardware Specs:
2 vCPUs
8 GB RAM (Minimum requirement is 4GB)
50 GB free disc space
CentOS 7 OS

You can run it with following standard configurations:

4 vCPUs
16 GB RAM (Minimum requirement is 4GB)
50 GB free disc space
CentOS 7 OS

Update your system

root@openshiftserver#yum -y update

Install and Configure Docker

OpenShift required docker engine on the host machine for running containers. Install Docker on CentOS 7.

root@openshiftserver# yum install -y yum-utils device-mapper-persistent-data lvm2

Add docker Repository:

root@openshiftserver# yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
root@openshiftserver# yum install -y  docker-ce docker-ce-cli containerd.io

Add your standard user account to docker group.

root@openshiftserver# usermod -aG docker $USER

After installing Docker, configure the Docker daemon with an insecure registry parameter of 172.30.0.0/16

root@openshiftserver# mkdir /etc/docker /etc/containers

root@openshiftserver# tee /etc/containers/registries.conf<<EOF
[registries.insecure]
registries = ['172.30.0.0/16']
EOF

root@ocserver# tee /etc/docker/daemon.json<<EOF
{
   "insecure-registries": [
     "172.30.0.0/16"
   ]
}
EOF

We need to reload systemd and restart the Docker daemon after editing the config.

root@openshiftserver# systemctl daemon-reload
root@openshiftserver# systemctl restart docker

Enable Docker to start at boot:

root@openshiftserver# systemctl enable docker
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
Then enable IP forwarding on your system.

echo "net.ipv4.ip_forward = 1" | root@ocserver# tee -a /etc/sysctl.conf
root@openshiftserver# sysctl -p

Configure Firewalld:

Ensure that your firewall allows containers access to the OpenShift master API (8443/tcp) and DNS (53/udp) endpoints.

DOCKER_BRIDGE=`docker network inspect -f "{{range .IPAM.Config }}{{ .Subnet }}{{end}}" bridge`
root@openshiftserver# firewall-cmd --permanent --new-zone dockerc
root@openshiftserver# firewall-cmd --permanent --zone dockerc --add-source $DOCKER_BRIDGE
root@openshiftserver# firewall-cmd --permanent --zone dockerc --add-port={80,443,8443}/tcp
root@openshiftserver# firewall-cmd --permanent --zone dockerc --add-port={53,8053}/udp
root@openshiftserver# firewall-cmd --reload

 Download the Linux oc binary

At this step, we can download the Linux oc binary from openshift-origin-client-tools-VERSION-linux-64bit.tar.gz and place it in your path.

[root@openshiftserver ~]# wget https://github.com/openshift/origin/releases/download/v3.11.0/openshift-origin-client-tools-v3.11.0-0cbc58b-linux-64bit.tar.gz
--2020-01-20 11:55:52--  https://github.com/openshift/origin/releases/download/v3.11.0/openshift-origin-client-tools-v3.11.0-0cbc58b-linux-64bit.tar.gz
Resolving github.com (github.com)...

[root@openshiftserver ~]# tar xvf openshift-origin-client-tools*.tar.gz

[root@openshiftserver ~]# cd openshift-origin-client*/
[root@openshiftserver openshift-origin-client-tools-v3.11.0-0cbc58b-linux-64bit]# mv  oc kubectl  /usr/local/bin/

Verify installation of OpenShift client utility.

[root@openshiftserver openshift-origin-client-tools-v3.11.0-0cbc58b-linux-64bit]# oc version
oc v3.11.0+0cbc58b
kubernetes v1.11.0+d4cacc0
features: Basic-Auth GSSAPI Kerberos SPNEGO
[root@openshiftserver openshift-origin-client-tools-v3.11.0-0cbc58b-linux-64bit]#

Start OpenShift Origin (OKD)

Now bootstrap a local single server OpenShift Origin cluster by running the following command:

[root@openshiftserver ~]#  oc cluster up
Getting a Docker client ...
Checking if image openshift/origin-control-plane:v3.11 is available ...
Checking type of volume mount ...
Determining server IP ...
Checking if OpenShift is already running ...
Checking for supported Docker version (=>1.22) ...
Checking if insecured registry is configured properly in Docker ...
Checking if required ports are available ...
Checking if OpenShift client is configured properly ...
Checking if image openshift/origin-control-plane:v3.11 is available ...
Starting OpenShift using openshift/origin-control-plane:v3.11 ...
I0120 12:03:11.429059    2287 config.go:40] Running "create-master-config"
I0120 12:03:13.167195    2287 config.go:46] Running "create-node-config"
I0120 12:03:14.264675    2287 flags.go:30] Running "create-kubelet-flags"
I0120 12:03:14.851766    2287 run_kubelet.go:49] Running "start-kubelet"
I0120 12:03:15.036655    2287 run_self_hosted.go:181] Waiting for the kube-apiserver to be ready ...
I0120 12:03:36.048578    2287 interface.go:26] Installing "kube-proxy" ...
I0120 12:03:36.048609    2287 interface.go:26] Installing "kube-dns" ...
I0120 12:03:36.048618    2287 interface.go:26] Installing "openshift-service-cert-signer-operator" ...
I0120 12:03:36.048626    2287 interface.go:26] Installing "openshift-apiserver" ...
I0120 12:03:36.048655    2287 apply_template.go:81] Installing "kube-proxy"
I0120 12:03:36.048662    2287 apply_template.go:81] Installing "kube-dns"
I0120 12:03:36.048660    2287 apply_template.go:81] Installing "openshift-apiserver"
I0120 12:03:36.048691    2287 apply_template.go:81] Installing "openshift-service-cert-signer-operator"
I0120 12:03:38.051961    2287 interface.go:41] Finished installing "kube-proxy" "kube-dns" "openshift-service-cert-signer-operator" "openshift-apiserver"
I0120 12:06:14.074492    2287 run_self_hosted.go:242] openshift-apiserver available
I0120 12:06:14.074939    2287 interface.go:26] Installing "openshift-controller-manager" ...
I0120 12:06:14.074961    2287 apply_template.go:81] Installing "openshift-controller-manager"
I0120 12:06:16.003356    2287 interface.go:41] Finished installing "openshift-controller-manager"
Adding default OAuthClient redirect URIs ...
Adding web-console ...
Adding registry ...
Adding router ...
Adding sample-templates ...
Adding persistent-volumes ...
Adding centos-imagestreams ...
I0120 12:06:16.018994    2287 interface.go:26] Installing "openshift-web-console-operator" ...
I0120 12:06:16.019019    2287 interface.go:26] Installing "openshift-image-registry" ...
I0120 12:06:16.019027    2287 interface.go:26] Installing "openshift-router" ...
I0120 12:06:16.019035    2287 interface.go:26] Installing "sample-templates" ...
I0120 12:06:16.019042    2287 interface.go:26] Installing "persistent-volumes" ...
I0120 12:06:16.019050    2287 interface.go:26] Installing "centos-imagestreams" ...
I0120 12:06:16.019101    2287 apply_list.go:67] Installing "centos-imagestreams"
I0120 12:06:16.019327    2287 apply_template.go:81] Installing "openshift-web-console-operator"
I0120 12:06:16.019487    2287 interface.go:26] Installing "sample-templates/sample pipeline" ...
I0120 12:06:16.019498    2287 interface.go:26] Installing "sample-templates/mysql" ...
I0120 12:06:16.019506    2287 interface.go:26] Installing "sample-templates/cakephp quickstart" ...
I0120 12:06:16.019514    2287 interface.go:26] Installing "sample-templates/dancer quickstart" ...
I0120 12:06:16.019523    2287 interface.go:26] Installing "sample-templates/jenkins pipeline ephemeral" ...
I0120 12:06:16.019530    2287 interface.go:26] Installing "sample-templates/nodejs quickstart" ...
I0120 12:06:16.019538    2287 interface.go:26] Installing "sample-templates/rails quickstart" ...
I0120 12:06:16.019547    2287 interface.go:26] Installing "sample-templates/mongodb" ...
I0120 12:06:16.019554    2287 interface.go:26] Installing "sample-templates/mariadb" ...
I0120 12:06:16.019561    2287 interface.go:26] Installing "sample-templates/postgresql" ...
I0120 12:06:16.019570    2287 interface.go:26] Installing "sample-templates/django quickstart" ...
I0120 12:06:16.019578    2287 apply_list.go:67] Installing "sample-templates/mysql"
I0120 12:06:16.019606    2287 apply_list.go:67] Installing "sample-templates/django quickstart"
I0120 12:06:16.019745    2287 apply_list.go:67] Installing "sample-templates/cakephp quickstart"
I0120 12:06:16.019896    2287 apply_list.go:67] Installing "sample-templates/dancer quickstart"
I0120 12:06:16.020016    2287 apply_list.go:67] Installing "sample-templates/jenkins pipeline ephemeral"
I0120 12:06:16.020029    2287 apply_list.go:67] Installing "sample-templates/sample pipeline"
I0120 12:06:16.020157    2287 apply_list.go:67] Installing "sample-templates/nodejs quickstart"
I0120 12:06:16.020219    2287 apply_list.go:67] Installing "sample-templates/rails quickstart"
I0120 12:06:16.020340    2287 apply_list.go:67] Installing "sample-templates/mongodb"
I0120 12:06:16.020346    2287 apply_list.go:67] Installing "sample-templates/mariadb"
I0120 12:06:16.020463    2287 apply_list.go:67] Installing "sample-templates/postgresql"
I0120 12:06:22.590203    2287 interface.go:41] Finished installing "sample-templates/sample pipeline" "sample-templates/mysql" "sample-templates/cakephp quickstart" "sample-templates/dancer quickstart" "sample-templates/jenkins pipeline ephemeral" "sample-templates/nodejs quickstart" "sample-templates/rails quickstart" "sample-templates/mongodb" "sample-templates/mariadb" "sample-templates/postgresql" "sample-templates/django quickstart"
I0120 12:06:42.755148    2287 interface.go:41] Finished installing "openshift-web-console-operator" "openshift-image-registry" "openshift-router" "sample-templates" "persistent-volumes" "centos-imagestreams"
Login to server ...
Creating initial project "myproject" ...
Server Information ...
OpenShift server started.

The server is accessible via web console at:
    https://<server ip>:8443

You are logged in as:
    User:     developer
    Password: <any value>

To login as administrator:
    oc login -u system:admin

[root@openshiftserver ~]#

[root@openshiftserver ~]# oc cluster up --routing-suffix=<ServerPublicIP>.xip.io --public-hostname=<ServerPulicDNSName>

Example:

[root@openshiftserver ~]# oc cluster up --public-hostname=okd.example.org --routing-suffix='services.example.org'
The OpenShift Origin cluster configuration files will be located inside the openshift.local.clusterup/ directory.

If your cluster setup was successful, you should get a positive output for the following command.

On AWS : This should be your public hostname.

[root@openshiftserver ~]# oc cluster status
Web console URL: https://okd.example.org:8443/console/

Config is at host directory
Volumes are at host directory
Persistent volumes are at host directory /openshift.local.clusterup/openshift.local.pv
Data will be discarded when cluster is destroyed

Using OpenShift Origin :

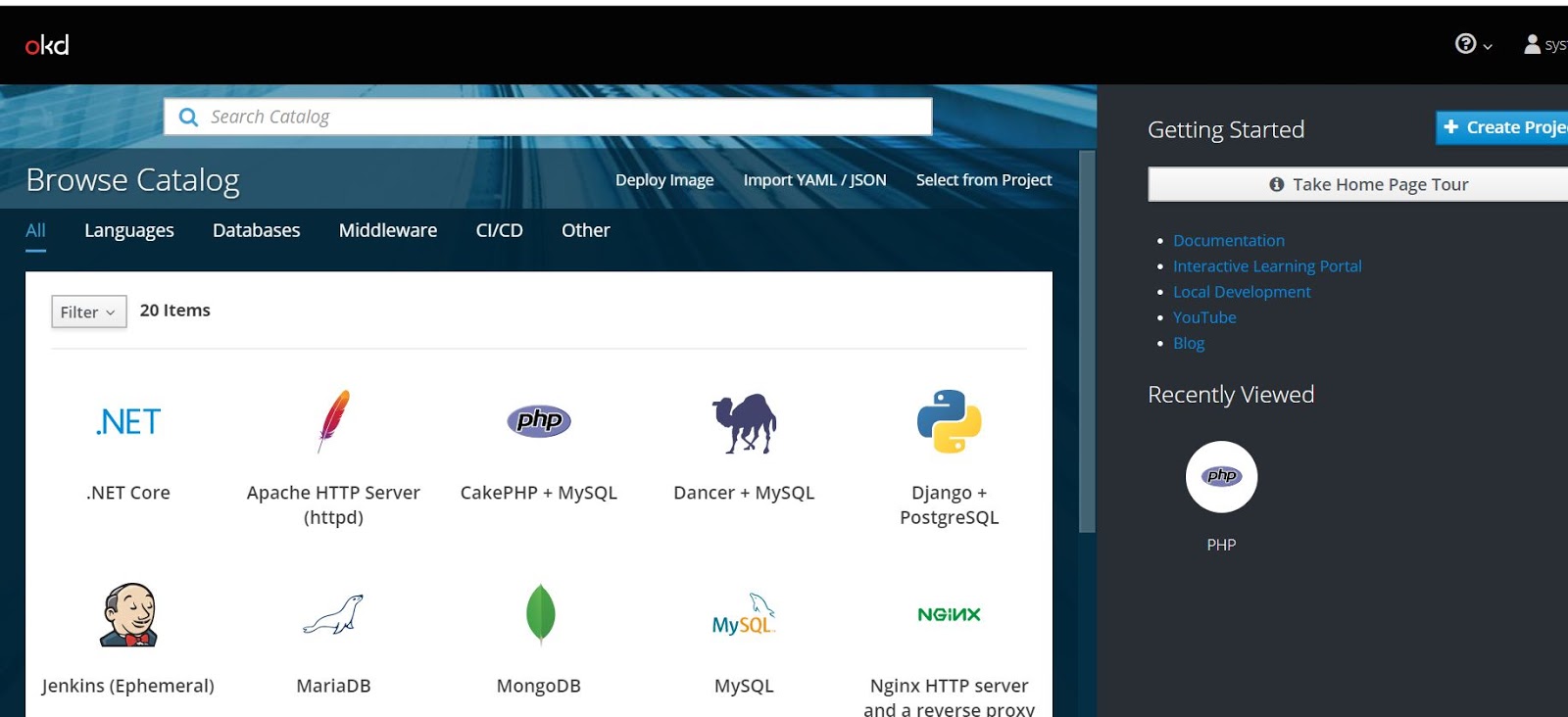

To login as an administrator, use: or you can access by OKD GUI.

[root@openshiftserver /]# oc login -u system:admin
Logged into "https://127.0.0.1:8443" as "system:admin" using existing credentials.

You have access to the following projects and can switch between them with 'oc project <projectname>':

    default
    kube-dns
    kube-proxy
    kube-public
    kube-system
  * myproject
    openshift
    openshift-apiserver
    openshift-controller-manager
    openshift-core-operators
    openshift-infra
    openshift-node
    openshift-service-cert-signer
    openshift-web-console

Using project "myproject".
[root@openshiftserver /]#

[root@openshiftserver /]# oc get nodes
NAME        STATUS    ROLES     AGE       VERSION
localhost   Ready     <none>    55m       v1.11.0+d4cacc0
[root@openshiftserver /]#

[root@openshiftserver /]# oc get nodes -o wide
NAME        STATUS    ROLES     AGE       VERSION           INTERNAL-IP   EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION               CONTAINER-RUNTIME
localhost   Ready     <none>    56m       v1.11.0+d4cacc0   10.0.1.28     <none>        CentOS Linux 7 (Core)   3.10.0-1062.9.1.el7.x86_64   docker://19.3.5
[root@openshiftserver /]#

[root@openshiftserver /]# oc describe node localhost
Name:               localhost
Roles:              <none>
Labels:             beta.kubernetes.io/arch=amd64
                    beta.kubernetes.io/os=linux
                    kubernetes.io/hostname=localhost
Annotations:        volumes.kubernetes.io/controller-managed-attach-detach=true
CreationTimestamp:  Mon, 20 Jan 2020 12:03:38 +0000
Taints:             <none>
Unschedulable:      false
Conditions:

[root@openshiftserver /]# oc status
In project My Project (myproject) on server https://127.0.0.1:8443

You have no services, deployment configs, or build configs.
Run 'oc new-app' to create an application.
[root@openshiftserver /]#

To switch between projects, Please enter following command  'oc project <projectname>'

To return to the regular developer user, login as that user:

$ oc login
Authentication required for https://127.0.0.1:8443 (openshift)
Username: developer
Password: developer
Login successful.

Confirm if Login was successful.

[root@openshiftserver /]# oc whoami
system:admin
[root@openshiftserver /]#
